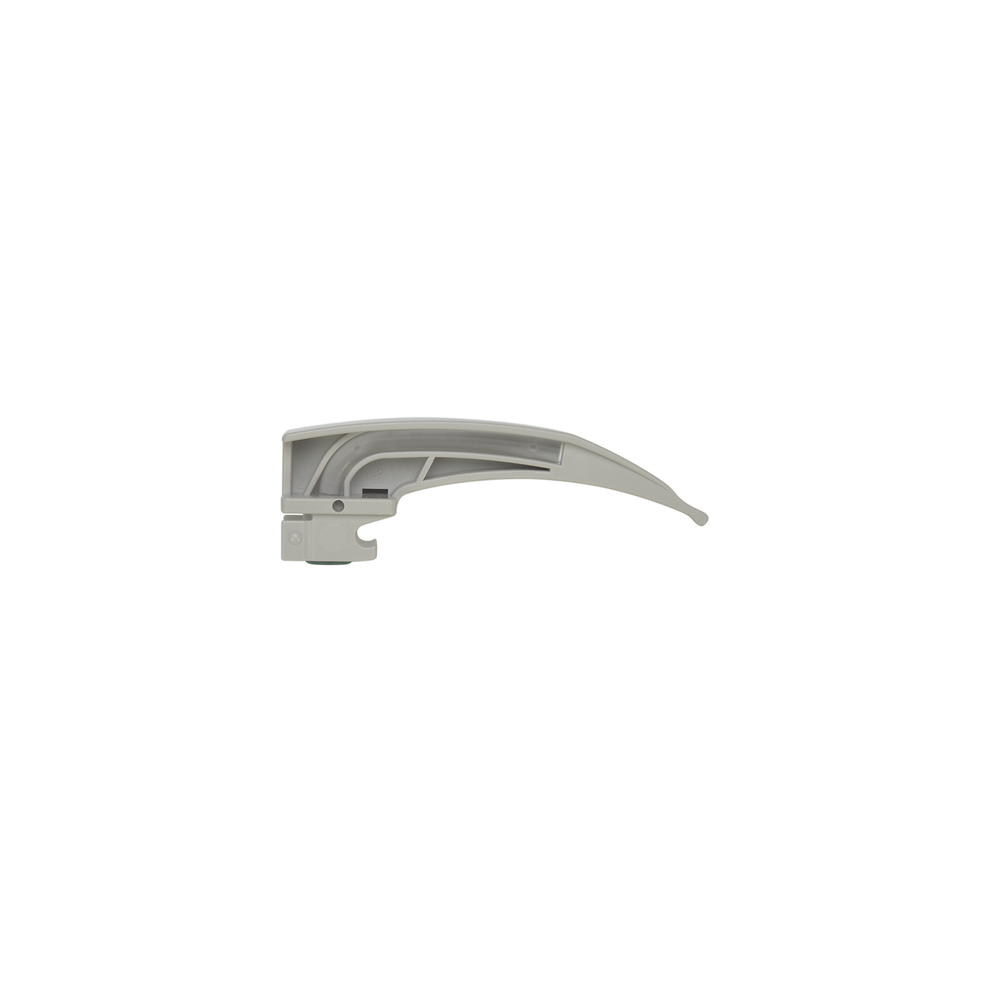

MODULAR MACINTOSH
MODULAR MACINTOSH:-
- Modular blade design being compatible to all the green spec handles
- Light guides are permanently etched for Blade type & size- quick fitment
- Smooth shape- no sharp edges, High quality stainless steel construction and matt finish
- Shortened shoulder of blades- improves the anesthetist’s view to epiglottis & vocal cords.
- No flickering or low light issues- due to lamp located inside handles and not on blades.
- Tested to withstand 4000 standard Autoclave cycles of 121”C / 3 minutes
- Blades are also compatible with Sterrad and other low-temperature gas plasma sterilization procedures
- Fiber optic bundle 4mm & 5000 individual glass optic fibers for best in class light transmission
- Modular F/O blades with removable light guide- simple to remove and refit upon cleaning
- Modular F/O Blades available in Curved Macintosh 0,1,2,3,4,5 and Straight Miller 0,1,2,3,4,5 sizes
- Blades supplied individually or in sets with suitable long-life foam padded carry cases.
|
FIBRE OPTIC REUSABLE LARYNGSCOPE- MODULAR |
||||
|
Catalogue No. |
Blade Size |
Total Length (A) |
Proxy Height (B) |
Distal Width |
|
GSM - 3210 |
MAC 0 |
81.00 mm |
13.50 mm |
9.00 mm |
|
GSM - 3211 |
MAC 1 |
92.00 mm |
16.00 mm |
11.50 mm |
|
GSM - 3212 |
MAC 2 |
114.00 mm |
16.00 mm |
14.00 mm |
|
GSM - 3213 |
MAC 3 |
133.00 mm |
19.00 mm |
14.00 mm |
|
GSM - 3214 |
MAC 4 |
157.00 mm |
19.50 mm |
14.00 mm |
|
GSM - 3215 |
MAC 5 |
174.00 mm |
14.00 mm |
14.00 mm |
